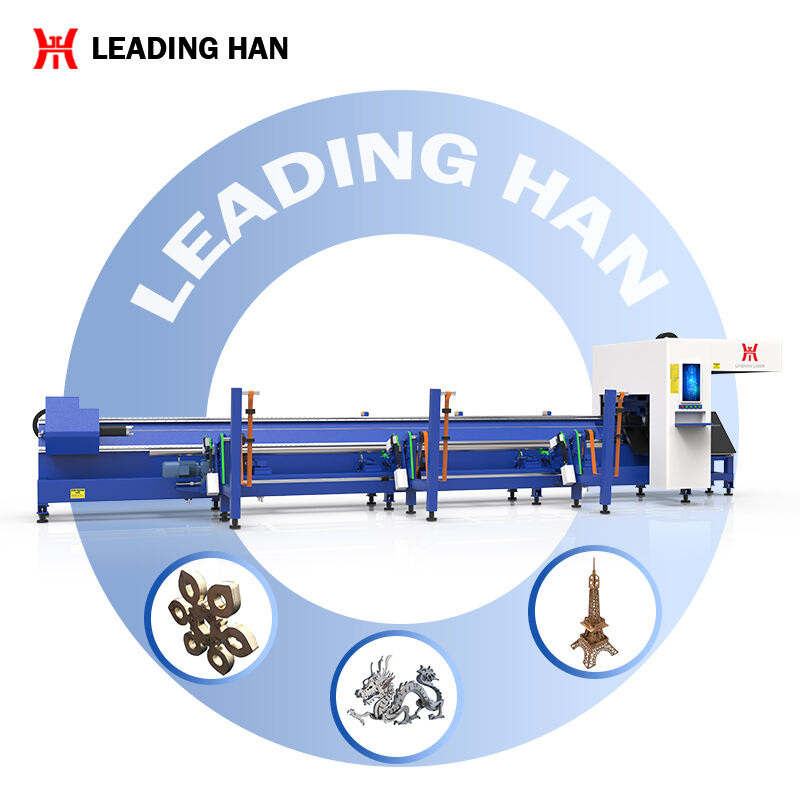

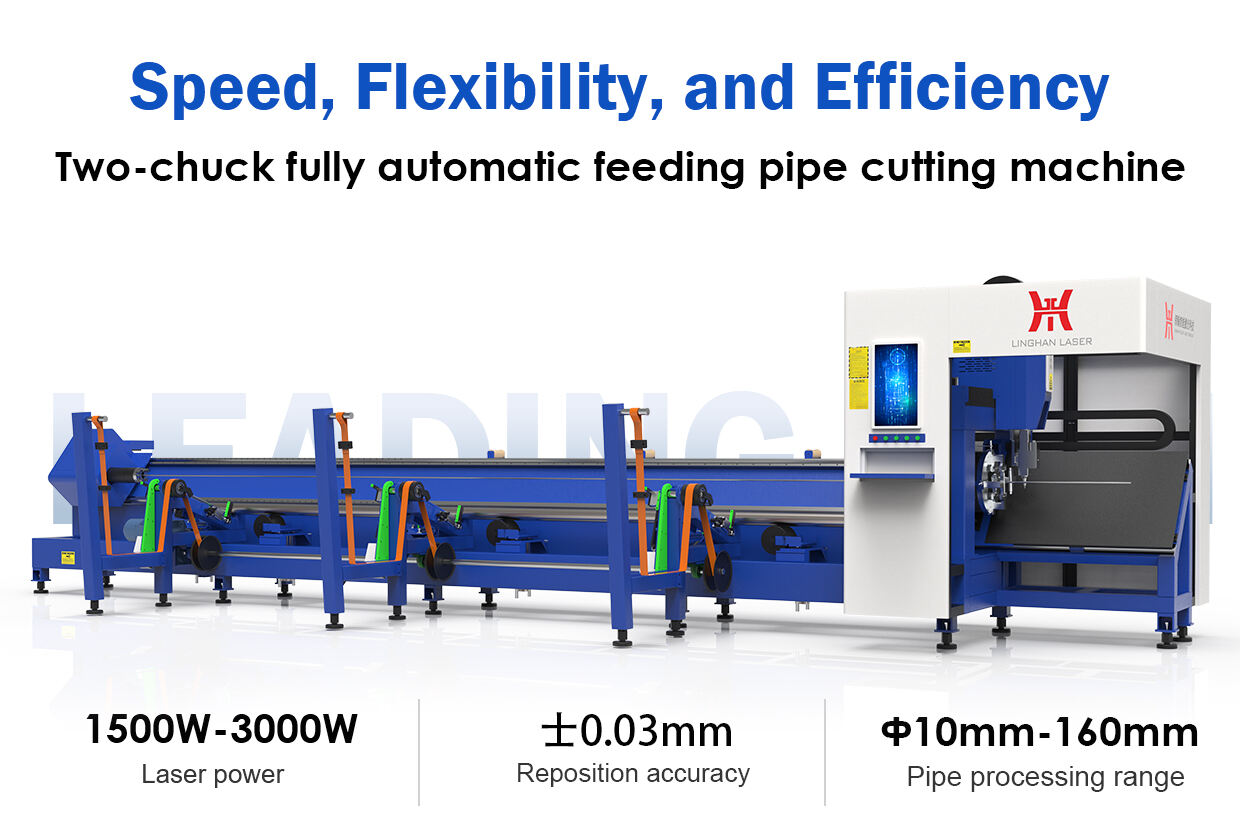

Fully automatic laser tube cutting machine
The all-round fiber laser metal tube cutting machine, with a laser power range from 1.5kw to 3kw, can accurately and efficiently process tubes up to 6000mm. Equipped with automatic loading and unloading functions, it can maximize work efficiency and reduce labor costs.
- Overview
- Recommended Products
Machine Features:
1.The front and rear adopt double pneumatic chuck clamping design, the clamping force can be adjusted arbitrarily, different forces can withstand different loads, avoiding the deformation of thin pipe clamps and loose clamps of thick pipes.
2.Equipped with automatic loading and unloading system, it saves labor costs, reduces the labor intensity of operators and improves production efficiency.
3.The operation is simple, and the machine can be remotely controlled for cutting, perforating, moving, calibrating, emergency stop, etc.
4.Wireless handle control, free control of clamping pressure, Convenient and practical, and full automation of production.
Product parameters：
Note: All sizes can be customized
| Model | PF6013 | PF6026 | PF6024 |
| Pipe processing range | Φ10mm-160mm | ||
| brand name | Leading han | ||
| Laser source brand | RAYCUS\IPG | ||
| Laser head brand | Raytools\Boci | ||
| Servo motor brand | DELTA | ||
| Guiderail | On the silver | ||
| Control system brand | Cypcut | ||
| Laser power | 1500W-3000W | ||
| Maximum cutting length |
7500mm | ||
| Cutting accuracy | ±0.05 mm | ||
| Reposition accuracy | ±0.03 mm | ||
| Maximum running speed |
60m/min | ||
| Maximum acceleration | 1.2G | ||
| Maximum cutting length |
6000mm | ||

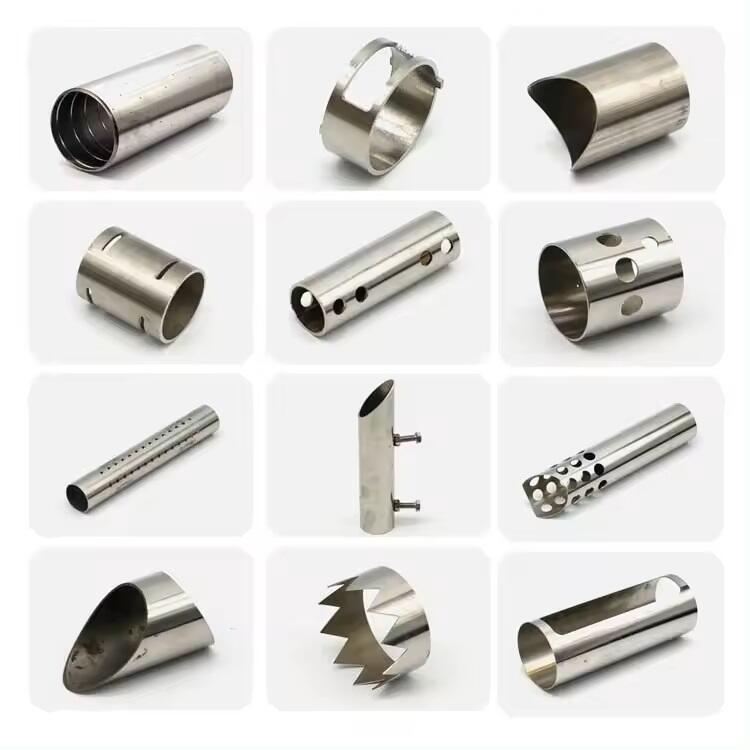

| Applicable Material | Round tubes, square tubes, special-shaped tubes, rectangular tubes,channel steels,l-beams,etc, can be cut into various shapes | ||
