How CNC Laser Tube Cutting Machines Improve Production Efficiency

Understanding CNC Laser Tube Cutting Technology and Its Role in Modern Manufacturing

The Fundamentals of Laser Tube Cutting and How It Works

CNC laser tube cutting machines work by directing a powerful laser beam at metal tubing, melting or vaporizing material with incredible precision down to the micron level. Most shops prefer fiber lasers these days because they're better suited for heavy duty industrial work. These lasers send their concentrated energy through CNC systems that guide the beam exactly where it needs to go according to pre-programmed instructions. Since there's no physical contact between the tool and material, this method puts minimal stress on metals such as stainless steel, aluminum, and various titanium alloys commonly used in manufacturing. The narrow cut width of about 0.004 inches or 0.1mm means manufacturers can create complex shapes directly from raw stock without needing additional machining steps after the initial cut.

Integration of CNC Control for Precision and Repeatability

With CNC automation, manufacturers can produce complex shapes consistently across large batches of parts. The system works by syncing laser output with how tubes rotate, sometimes spinning at speeds reaching around 3,000 RPM while keeping tight tolerances within about 0.005 inches or 0.127 millimeters when creating those intricate 3D contours. These closed loop control systems actually adjust on their own for things like variations in material thickness that happen frequently with ASTM A513 tubing, plus they handle fluctuations in room temperature too. What this means is reliable results whether someone is just testing out a prototype or running a full production line.

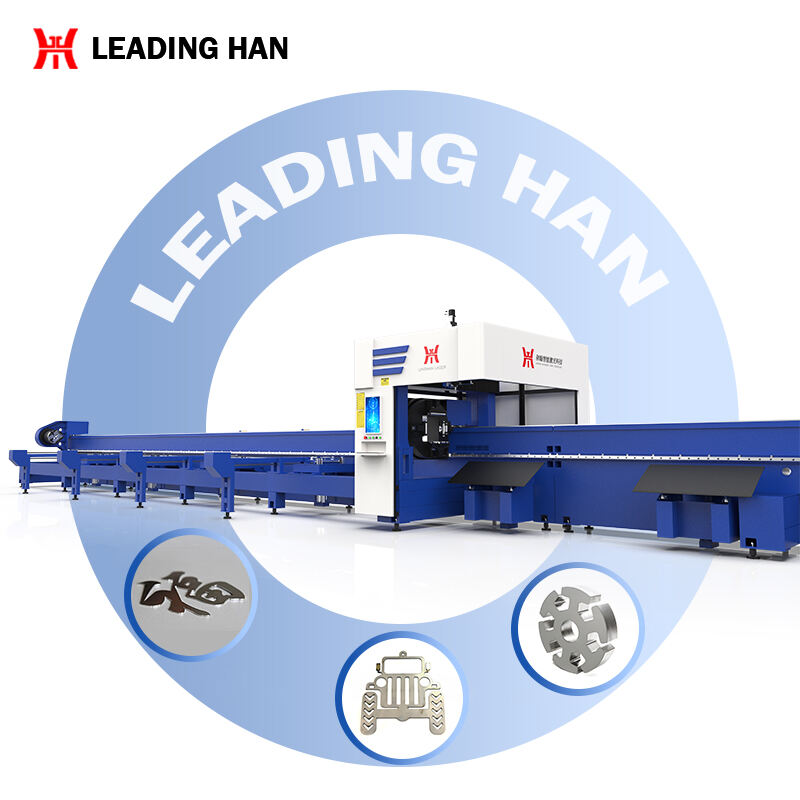

Key Components and Mechanics of CNC Laser Tube Cutting Machines

The core subsystems driving these machines include:

• High-brightness fiber lasers: Ranging from 1–12 kW, capable of cutting walls up to 0.5" (12.7mm) thick
• 6-axis motion systems: Combine linear guides with rotary chucks for simultaneous 3D cutting
• Vision-assisted alignment: CCD cameras detect weld seams and tube ovality with 0.002" (0.05mm) resolution
• Automated material handling: Servo-driven loaders manage tubes up to 60 feet (18m) long without manual input

These components work together to achieve throughput exceeding 400 inches (10m) per minute in thin-wall applications, transforming workflows in industries from aerospace to renewable energy.

Enhanced Precision and Complex Geometry Capabilities

Modern CNC laser tube cutting achieves tolerances within ±0.1mm, ensuring dimensional consistency that reduces downstream assembly errors by 23% compared to mechanical cutting methods—especially critical in aerospace and medical device manufacturing.

Achieving Tight Tolerances With CNC Laser Accuracy

Advanced motion control maintains positional accuracy within ±0.05mm over extended production runs. Real-time thermal compensation adjusts for material expansion, preserving cut precision even during continuous 8-hour operations.

Cutting Intricate Designs and Complex Profiles With Minimal Deviation

Fiber lasers with 20µm spot diameters enable fine feature cutting, including:

• Interlocking tabs for structural assemblies
• Ventilation patterns in architectural elements
• Fluid channels in heat exchangers
  This eliminates secondary machining in 78% of surveyed applications, streamlining production and reducing costs.

Laser Tube Profiling for Challenging Industrial Geometries

Six-axis cutting heads navigate around pre-bent tubes to create compound contours used in automotive exhaust systems and hydraulic manifolds. Adaptive beam shaping preserves cut quality on ovalized or irregular cross-sections, reducing geometry-related scrap by 42% in heavy equipment manufacturing.

Increased Speed and Operational Efficiency Through Automation

High-speed cutting powered by advanced laser sources

Modern systems achieve cutting speeds over 60 meters per minute using fiber lasers exceeding 6 kW, maintaining ±0.1 mm accuracy at peak velocity. These machines process stainless steel and aluminum tubing three times faster than plasma cutting, with minimal heat distortion enabling back-to-back operations without cooling delays.

Reduced setup times and tool changes via automated workflows

When it comes to switching between production runs, robotic loaders paired with those CNC driven rotary chucks can slash changeover time down by around 85% when compared against old fashioned manual setup methods. The systems come preloaded with settings for everyday materials such as ASTM A500 steel and 6061-T6 aluminum, making them ready to go with just one touch from operators. And there's something else worth mentioning too automatic nozzle changers that adjust themselves based on how thick the walls are, all without needing someone standing there watching over everything. A big name in appliances actually saw their need for adjusting tools drop by nearly 90% once they started using this kind of workflow across their facilities.

Case study: 40% faster cycle times in automotive tube fabrication

One major automotive component manufacturer saw their exhaust part production speed jump by nearly half after switching to CNC laser cutting technology. What used to take 14 minutes per part now only takes around 8 and a half minutes, which makes a huge difference when running multiple shifts. The new automated system can handle six axes at once and adjusts for diameter changes as it cuts, so they're able to produce about 300 extra parts each month without compromising quality standards like ISO 9001:2015. Industry reports from last year actually highlight this exact kind of improvement across several plants implementing similar technologies.

Minimizing Material Waste and Eliminating Secondary Processes

Precision Kerf Control for Optimized Material Utilization

Consistent kerf widths of ±0.1 mm maximize nesting efficiency and material yield, particularly important when working with expensive alloys or thick-walled tubing. Minimal heat-affected zones reduce distortion, preserving structural integrity and enabling tighter part layouts.

Clean, Burr-Free Cuts Reducing Need for Post-Processing

Fiber lasers produce edges with surface roughness below Ra 12.5 µm, eliminating the need for deburring and grinding. In architectural metalwork, where finishing once consumed 34% of production time, this reduction lowers labor costs by 40–60%.

Case Study: 30% Reduction in Scrap Rates in HVAC Component Production

A Midwest fabricator reduced stainless steel tube scrap from 18% to 12.6% annually after implementing a 6kW CNC laser system, saving $740,000 per year. Real-time compensation algorithms corrected for tube ovality, while automated nesting software maximized yield across 27,000 monthly HVAC bracket productions.

Long-Term Cost and Time Savings in High-Volume Manufacturing

Lower Production Costs and Shorter Lead Times with CNC Laser Systems

The adoption of CNC laser tube cutting significantly reduces costs per part thanks to automated processes, less material waste, and quicker turnaround times. Shops that have switched over typically see around a 20% drop in yearly running costs when compared with traditional mechanical methods. Getting rid of those expensive custom tools and manual operations means setup can happen much quicker too sometimes as much as two thirds faster which allows many shops to start producing parts right away on the same day they receive an order. Modern systems now cut at speeds well above 100 meters per minute, so it's no surprise that manufacturers complete jobs anywhere from 30% to almost half a day sooner without compromising quality standards. Most machines maintain tolerances within about 0.1 millimeters give or take.

ROI Comparison: CNC Laser vs. Traditional Tube Cutting Methods

Over five years, CNC laser systems deliver 40–60% lower total ownership costs than traditional methods like sawing or milling:

Precision cutting also reduces downstream assembly costs by 19% due to improved fit and finish. For automotive suppliers producing over 500,000 tubular parts annually, ROI is typically achieved within 14–18 months through combined improvements in speed, waste reduction, and labor efficiency.

FAQs

What is CNC laser tube cutting?

CNC laser tube cutting is a technology that uses a high-powered laser to cut materials with precision, particularly metal tubing, utilized extensively in manufacturing settings to produce complex shapes.

What are the benefits of using fiber lasers in CNC tube cutting?

Fiber lasers offer precision, allow for minimal material wastage, and reduce the need for secondary processes. They can cut thicker materials and operate longer production runs efficiently.

How does CNC control enhance the laser cutting process?

CNC control provides precision and repeatability, ensuring tight tolerances and automated adaptations for variations in material thickness and environmental conditions.

How does CNC laser tube cutting help reduce manufacturing costs?

By reducing setup times, minimizing scrap rates, eliminating secondary processes, and cutting down on labor hours, CNC laser tube cutting lowers overall production costs and accelerates manufacturing cycles.
