Chuck

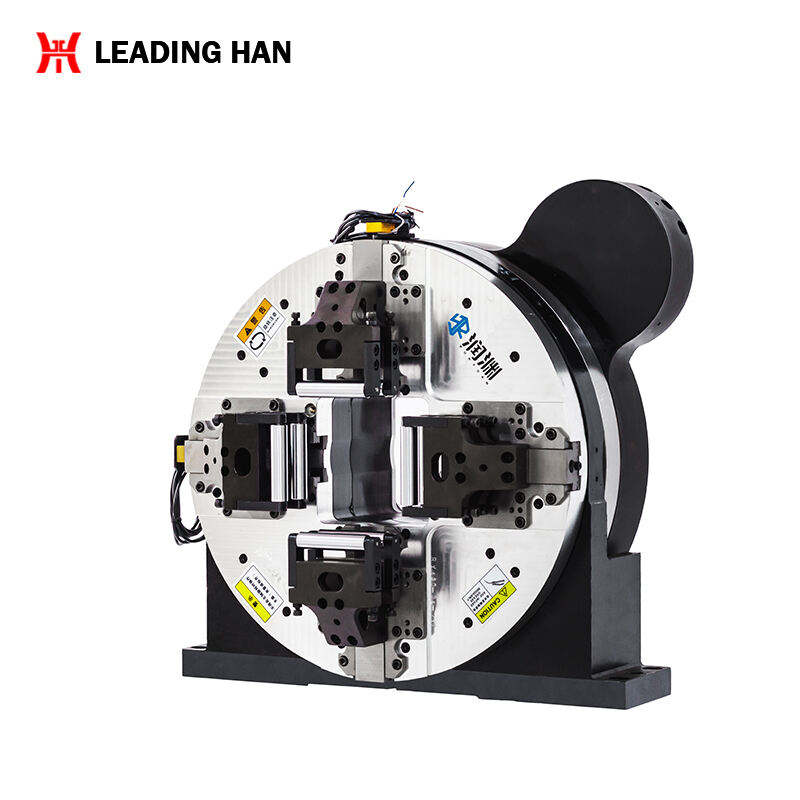

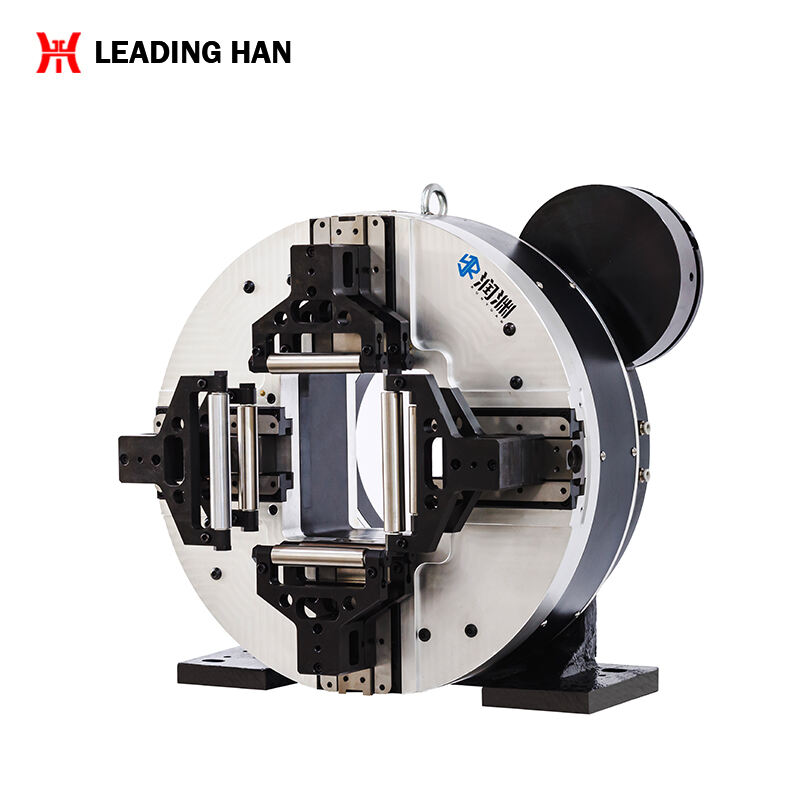

This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp work-piece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. The product is widely used in special laser pipe cutters and other pipe processing machine systems
- Overview
- Recommended Products
Product Details Description:
1. Integrated fully enclosed helical gear transmission structure Higher dustproof performance and operation stability, longer service life and better user experience;
2. Convenient concentricity adjustment locking assembly Allows end users to easily correct the rotation concentricity of the whole machine, and stronger overall precision stability
3. Standard jaw opening induction detection Short tail material cutting mode is safer, realizing automatic short tail material cutting and reducing the risk of machine collision
4. Slider automatic chip and ash removal structure design Automatic chip removal when the chuck is clamped, reducing the possibility of jamming and reducing the need for manual cleaning and maintenance
5. Aluminum body surface oxidation process treatment Better stain resistance and lower moment of inertia
Product parameters：
| Outer diameter(mm) | Φ525 |
| Through hole diameter(mm) | Φ170 |
| Center height (mm) | 280±0.05 |
| Total mass (Kg) | 180 |
| Inertia (Kg.cm²) | 30000 |
| Repeat positioning accuracy (mm) | ≤0.05 |
| Rotation accuracy (mm) | ≤0.05 |
| Single claw stroke (mm) | 81.5 |
| Single claw thrust (KN) | 1.5±10% |
| Processing range (mm) | φ10-φ160 |
| Allowable air pressure (M pa) | 0.3-0.9 |
| Rated speed (rpm) | 150 |
| Holding time (h) | 12 |
