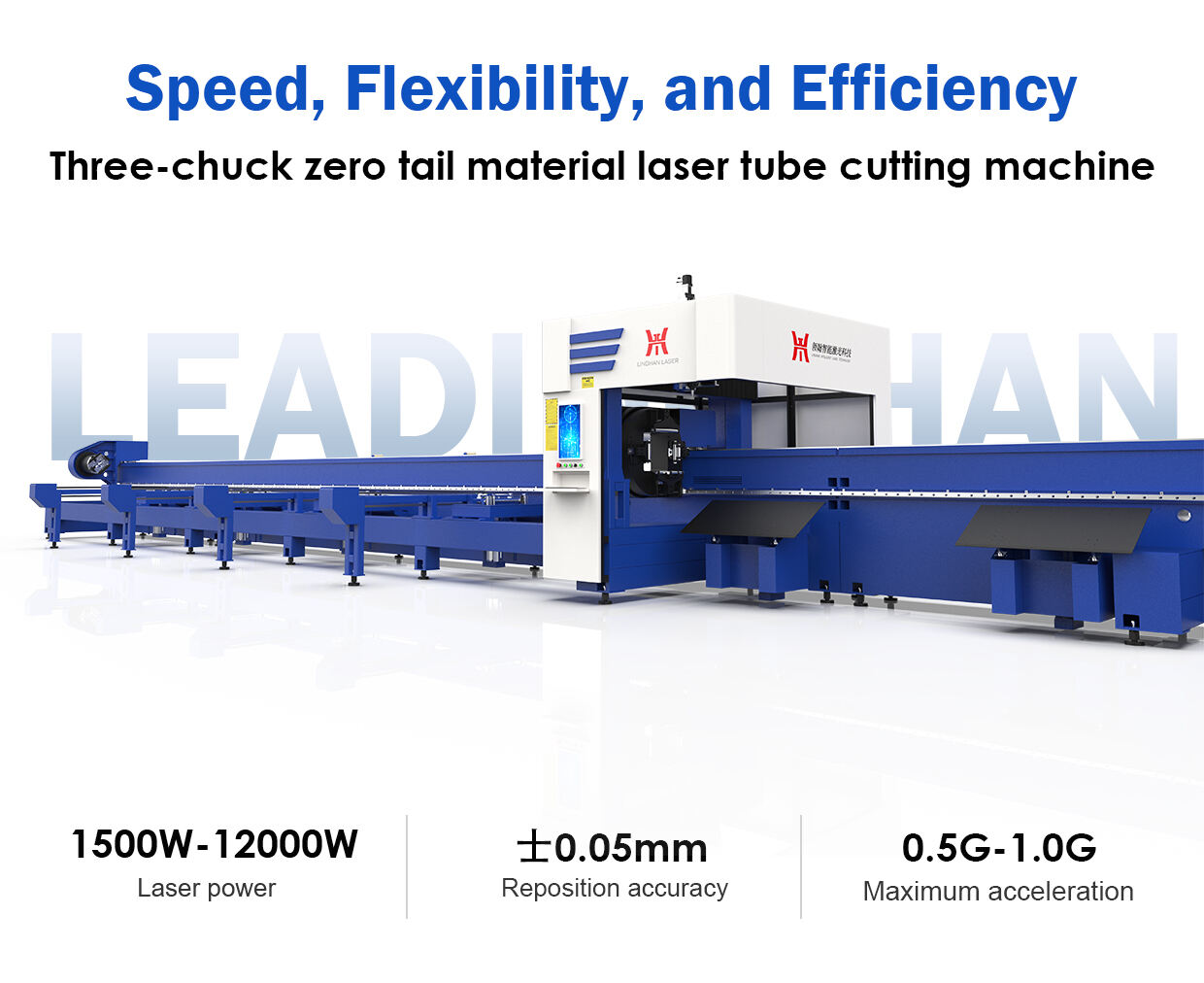

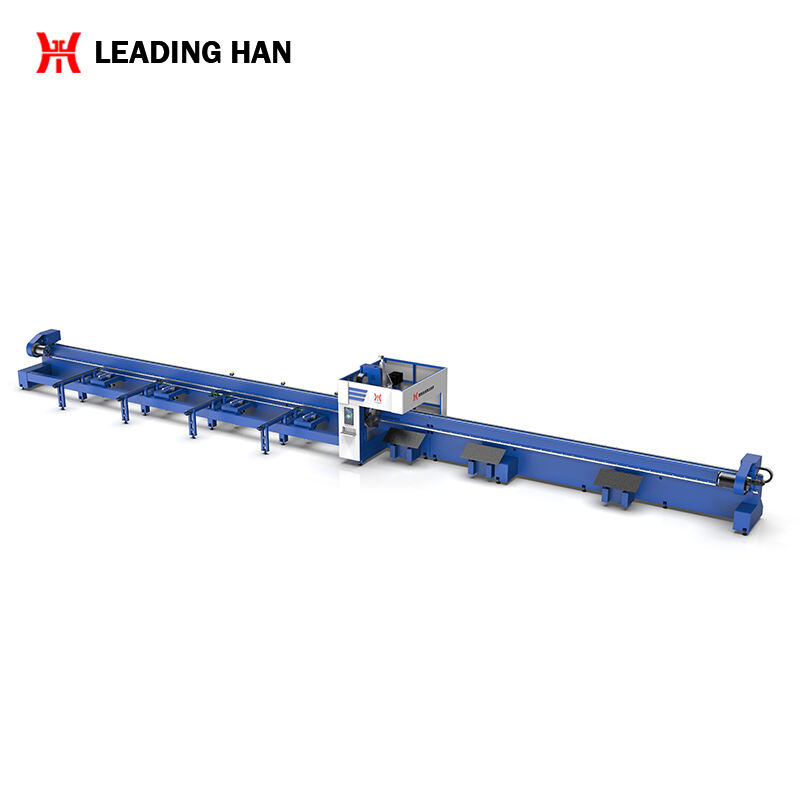

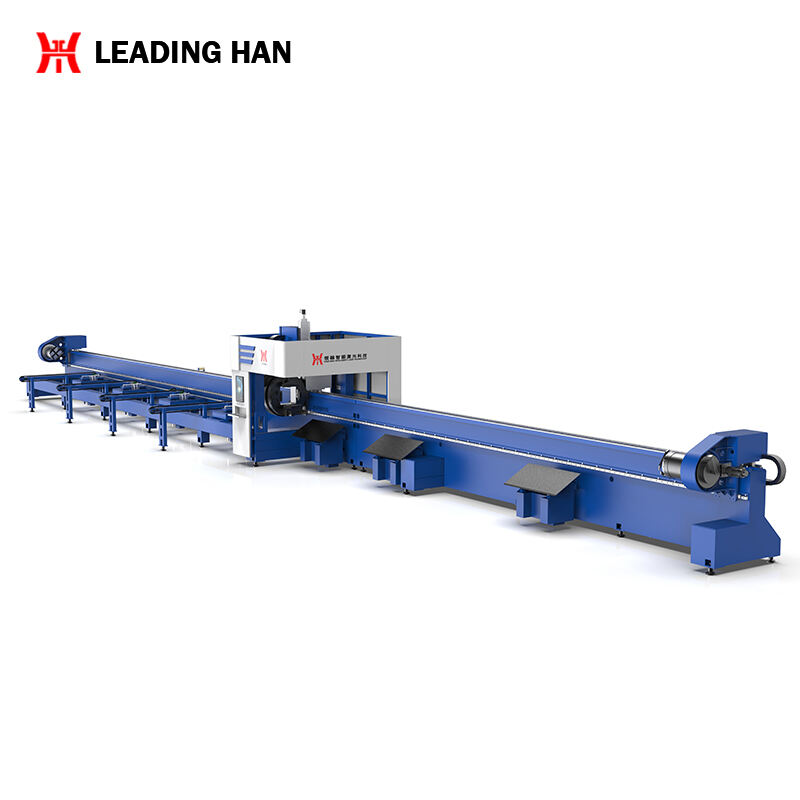

Three-chuck laser tube cutting machine
Ultra Heavy three-chuck Tube Laser Cutting Machine with laser power from 1.5kw to 12kw is designed for ultra heavy tubes and profiles. It features a side-attached machine bed for stability, larger loading capacity, and better shock resistance. three-chuck cutting in reverse achieves zero tailings, with high material utilization. Three chuck structure, double cutting stations, and servo support device ensure processing accuracy. Automatic loading and unloading platform saves labor costs, improves efficiency. Can cut Φ600mm round tube and bevel with 45° (optional). Length of single tube up to 12000mm and weight up to 1500kg.
- Overview
- Recommended Products
Machine Features:

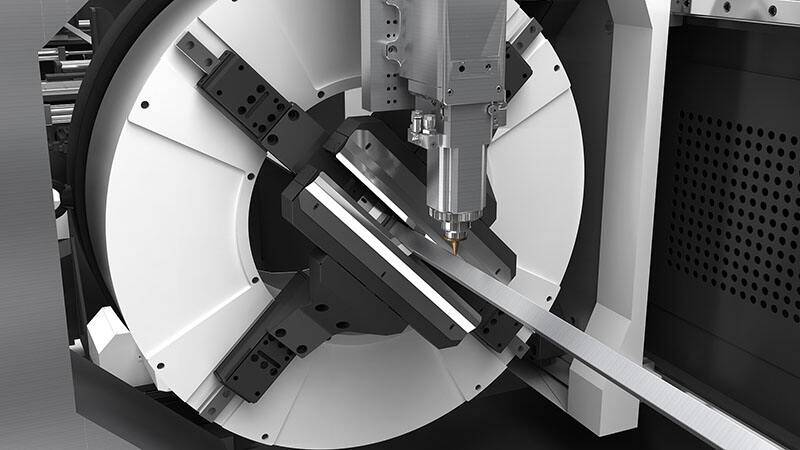

1. The design features a three-jaw chuck clamping system at both ends, with the rear chuck equipped with a blowing device to reduce residue on the pipe wall during cutting. The clamping force is adjustable to handle different loads, preventing deformation of thin pipe clamps and inadequate clamping of thick pipes.
2. The machine is designed with user-friendliness in mind, enhancing cutting efficiency while maximizing raw material use and reducing production costs to achieve "zero" waste.
3. The intelligent pipe cutting design includes smart support with high load-bearing capacity. The helical gear transmission effectively reduces noise and vibration caused by gear meshing during chuck operation, ensuring cutting stability.
Product parameters：
Note: All sizes can be customized
| Model | PS6013 | PS6024 | PS6035 | PS9035 | PS12035 |
| Pipe processing range | 10-550mm | ||||
| brand name | Leading han | ||||
| Laser source brand | RAYCUS\IPG | ||||
| Laser head brand | Raytools\Boci | ||||
| Servo motor brand | DELTA | ||||
| Guiderail | On the silver | ||||
| Control system brand | Cypcut | ||||
| Laser power | 1500W-12000W | ||||
| Pipe processing length | 6000-12000mm | ||||
| Cutting accuracy | ±0.05mm | ||||
| Reposition accuracy | ±0.03mm | ||||
| Maximum running speed | 60m/min | ||||
| Maximum acceleration | 0.5G-1G | ||||

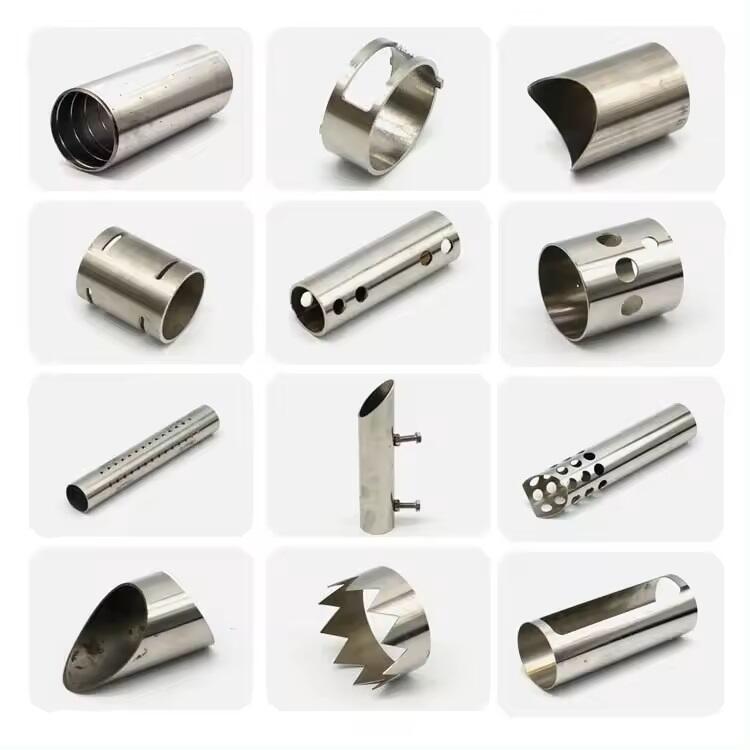

| Applicable Material | Round tubes,square tubes,special-shaped tubes, rectanqular tubes,channel steels,l-beams, etc, can be cut into various shapes |
||||
