Ultra-large format laser cutting machine

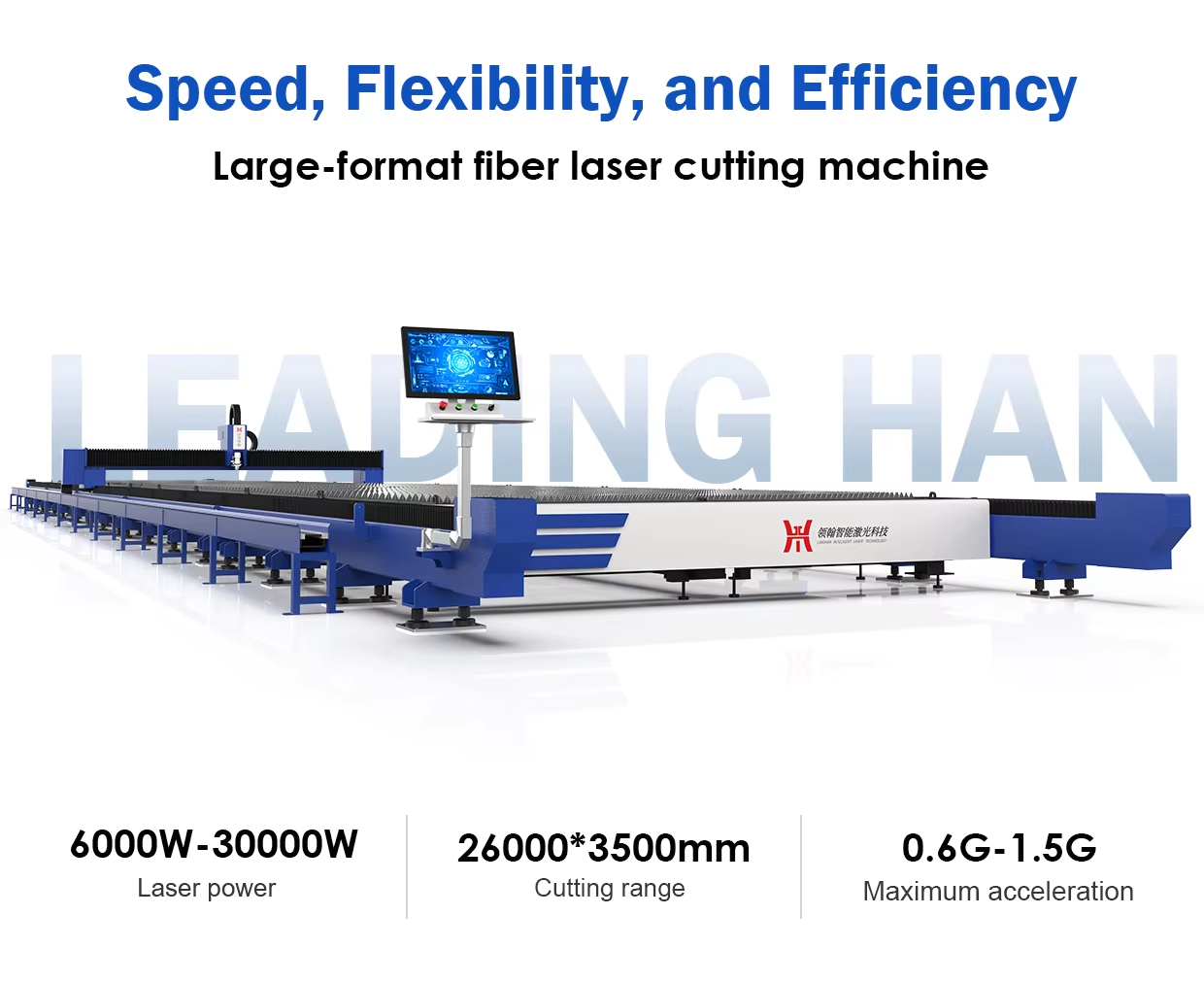

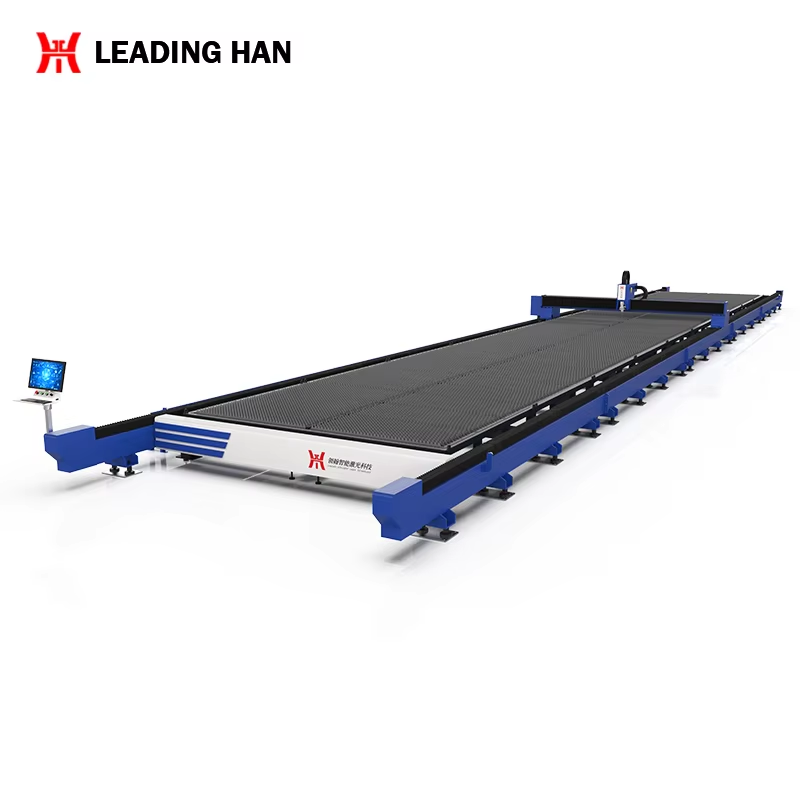

Introducing the Ground Rail Large-Format Fiber Laser Metal Cutting Machine – a groundbreaking solution designed to replace traditional oversized cutting methods. This advanced BH series model features an exceptionally large working table that can handle sheets up to 26,000mm by 3,500mm. It perfectly integrates user-friendly operation, robust safety features, and cutting-edge intelligent connectivity to deliver unparalleled precision and efficiency.
- Overview
- Recommended Products
Product Details Description:

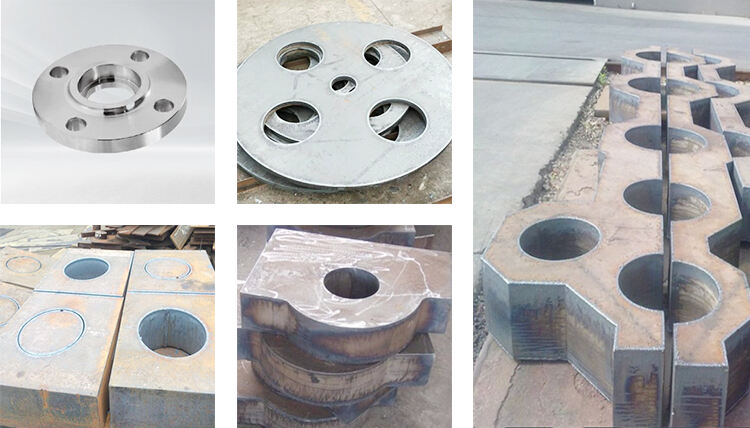

Ideal for various mechanical manufacturing and processing industries, this machine excels in cutting large, thick metal sheets with high power and accuracy. It is compatible with a wide range of materials, including carbon steel, stainless steel, galvanized steel, iron, aluminum, copper, gold, and silver alloys. Experience the next level of metal cutting technology with the BH series.
| Model | BH24026 | BH24032 | BH24035 | BH26032 | BH26035 |
| Cutting range | 24000*2600 | 24000*3200 | 24000*3500 | 26000*3200 | 26000*3500 |
| mm | mm | mm | mm | mm | |
| brand name | Leading han | ||||
| Plate processing size | customizable | ||||
| Laser source brand | RAYCUS\IPG | ||||
| Laser head brand | Raytools\Boci | ||||
| Servo motor brand | DELTA | ||||
| Guiderail | On the silver | ||||
| Control system brand | Cypcut | ||||
| X/Y-axis positioning accuracy | ±0.05 mm | ||||
| X,Y-axis uniaxial maximum positioning speed |
120 m/min | ||||
| X, Y-axis maximum linkage speed |
140 m/min | ||||
| Maximum running speed | 80 Meters /minute | ||||
| Z-axis travel | 300mm | ||||
| Laser power | 6000W-30000W | ||||
| Positioning accuracy | ±0.03mm | ||||
| Reposition accuracy | ±0.03mm | ||||
| Maximum acceleration | 0.6G-1.5G | ||||
| Applicable Material | Stainless Steel Carbon Steel Aluminum etc. | ||||
