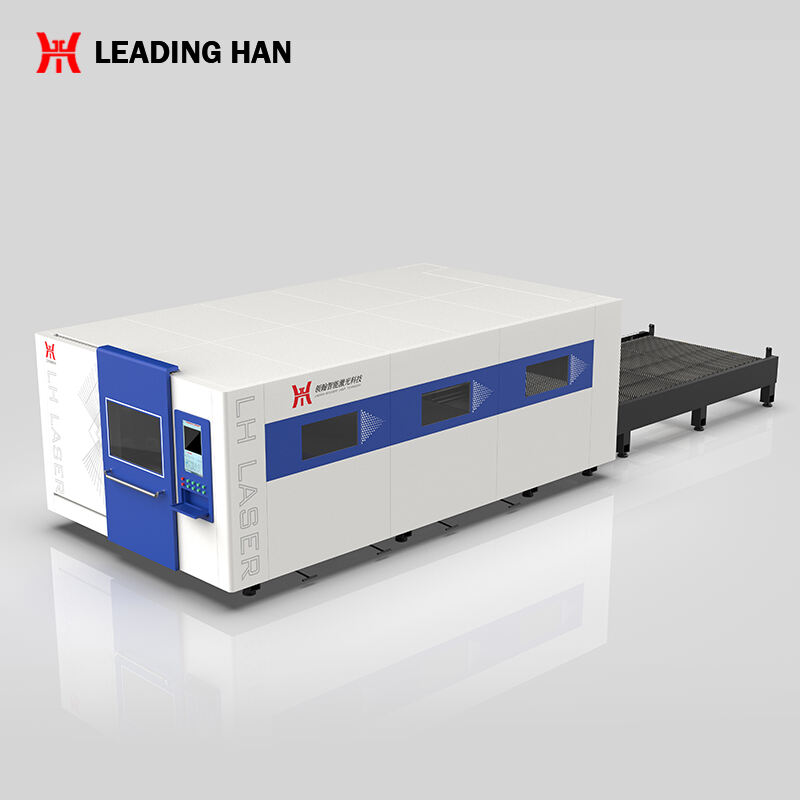

Large surround exchange platform laser cutting machine

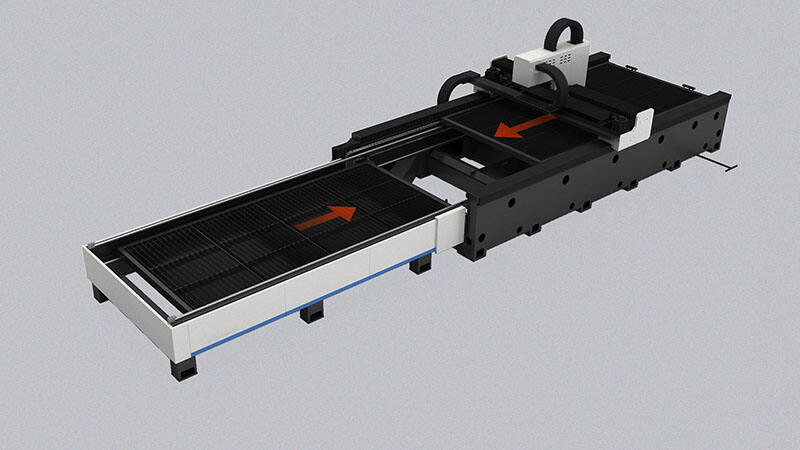

LH-BS laser cutting machine is designed for efficient sheet metal cutting and comes with an automatic exchange platform that completes a swap in just 20 seconds. The machine boasts a power range from 1.5 kW to 30 kW and accommodates working areas from 3000 mm × 1500 mm to 12000 mm × 2500 mm. Its high-quality mechanical design and perfect engineering ensure superior cutting precision, enhanced processing capabilities, and versatility across various applications.
- Overview
- Recommended Products
Product Details Description:

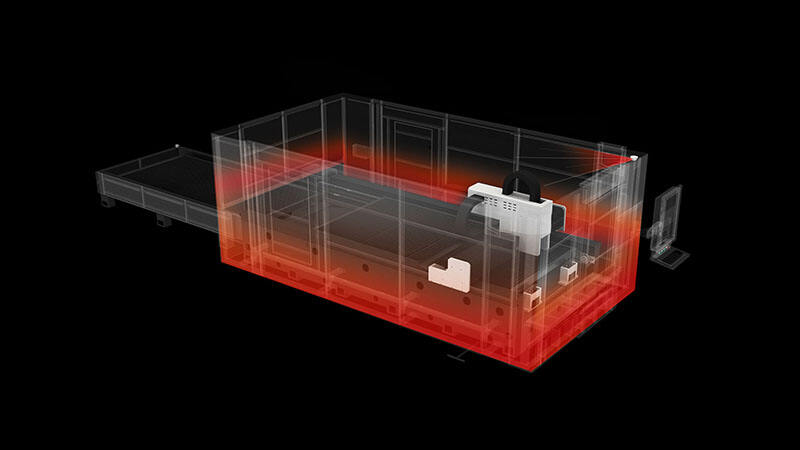

The technology integrates advanced European or Japanese design principles, featuring IPG (American) and Raycus (Chinese) laser sources—some of the best currently available. The machine’s structure is heat-treated at 600°C and cooled for 24 hours to guarantee a 20-year lifespan and precision. For alignment and accuracy testing, a high-resolution self-collimator is employed, while an original English-designed interferometer is used for accuracy verification, error compensation, and adjustment. Additionally, the machine includes self-regulation systems for injected gas pressure. The Sanyo or Panasonic inertial servomotors are imported from Japan, and the transmission system on rails and pinions is sourced from ALTANTA, the world’s leading German company.
Product parameters：
Note: All sizes can be customized
| Model | BS3015 | BS4015 | BS4020 | BS6020 | BS10025 |
| Cutting range | 3000*1500 | 4000*1500 | 4000*2000 | 6000*2000 | 8000*2500 |
| mm | mm | mm | mm | mm | |
| brand name | Leading han | ||||
| Plate processing size | customizable | ||||
| Laser source brand | RAYCUS\IPG | ||||

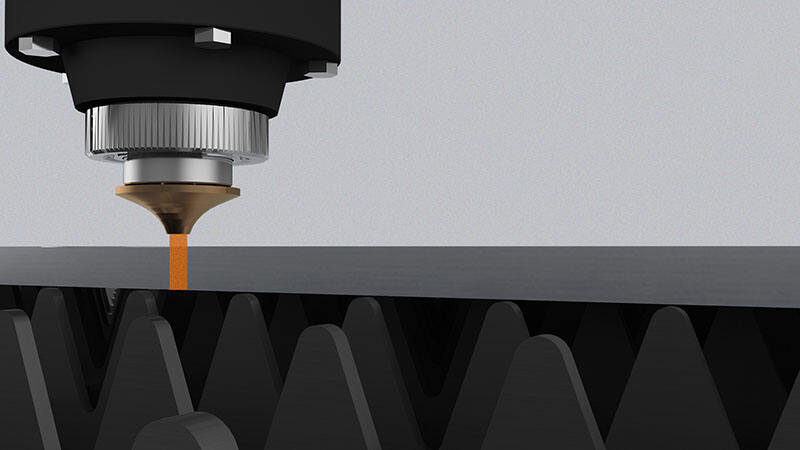

| Laser head brand | Raytools\Boci | ||||
| Servo motor brand | DELTA | ||||
| Guiderail | On the silver | ||||
| Control system brand | Cypcut | ||||
| X/Y-axis positioning | ±0.05 mm | ||||
| X,Yaxis uniaxial maximum | 120 m/min | ||||
| positioning speed | |||||
| X, Yaxis maximum linkage | 140 m/min | ||||
| speed | |||||
| Maximum running speed | 80 Meters /minute | ||||
| Z-axis travel | 300mm | ||||

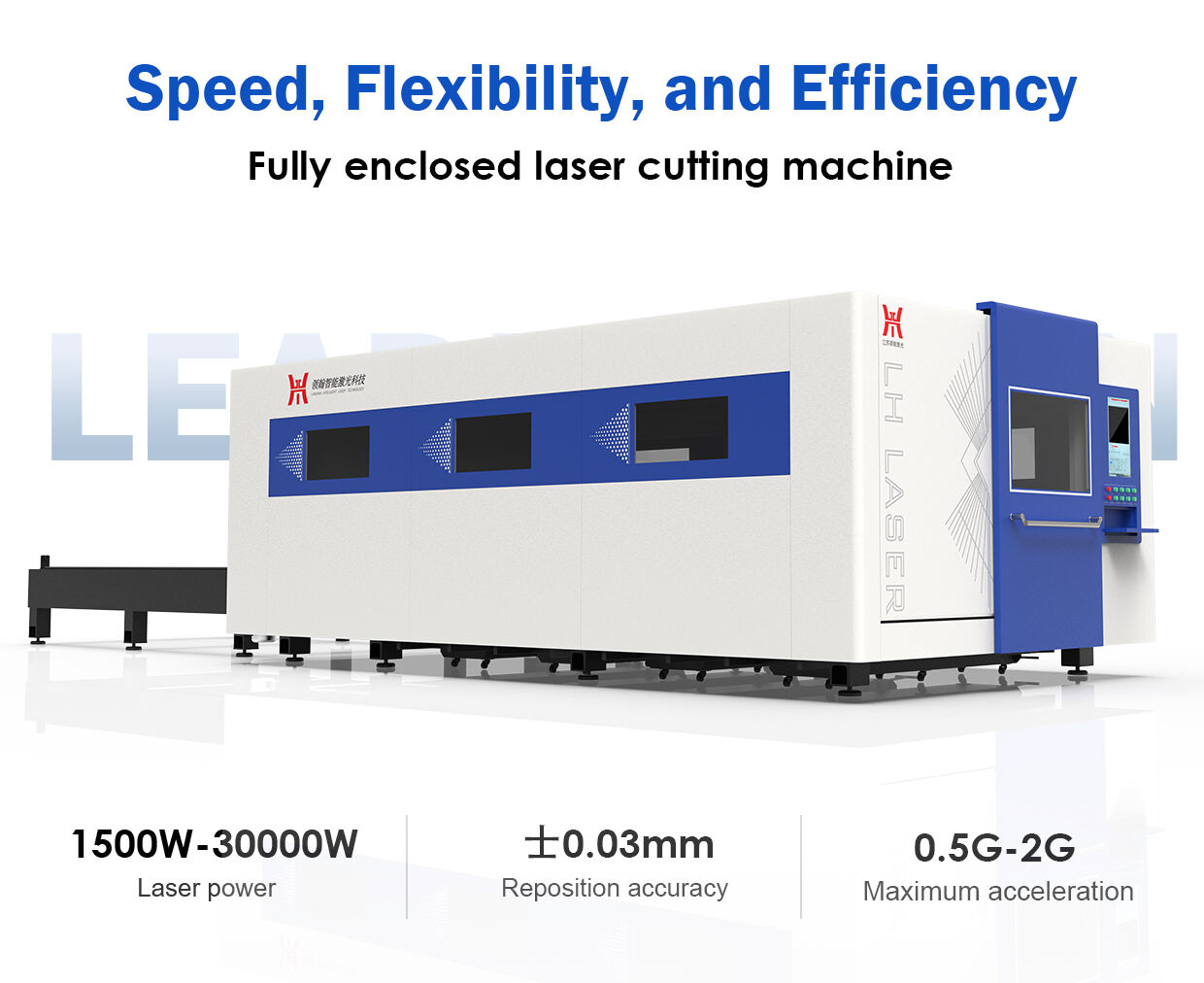

| Laser power | 1500W-6000W | ||||
| Positioning accuracy | ±0.03mm | ||||
| Reposition accuracy | ±0.03mm | ||||
| Maximum acceleration | 0.5G-1G | ||||
| Applicable Material | Stainless Steel Carbon Steel Aluminum etc. | ||||
