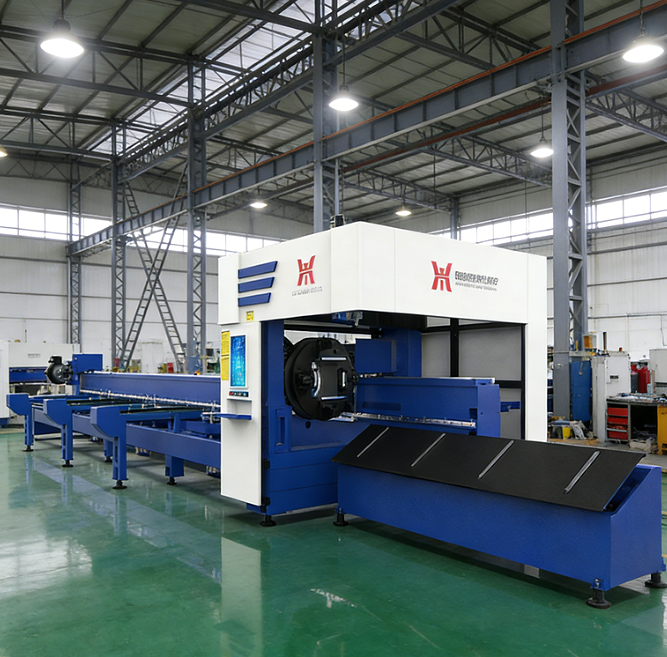

Precision Performance of Laser Pipe Cutting Machine on Angle Steel
Achievable Tolerances: ±0.1 mm Repeatability in Real-World Production
Laser pipe cutting machines today can hit around ±0.1 mm repeatability when working with angle steel during mass production runs, which beats plasma cutting performance by roughly 60% according to tests done in aerospace quality control labs. The reason behind such accuracy lies in several smart features built into these systems. They have dynamic error compensation mechanisms, with real time centering tech that stops rotational wobble issues before they happen. Plus there's this closed loop CNC feedback system constantly adjusting itself based on what it sees happening with the materials being cut and how heat affects everything over time. Car makers actually see about 99.7% compliance rates when checking dimensions on those structural L profiles they need for vehicle frames, something that shows just how reliable these cutting systems really are even when running non stop in factory environments day after day.
How Beam Quality and CNC Motion Control Ensure Angular Accuracy
Getting accurate angles depends on how well three main components work together. First, there are these high brightness fiber lasers with beam divergence below 0.1 milliradians. Then we have precision linear guides that can position things within plus or minus 0.03 mm per meter. And finally, adaptive servo controls round out the system. When working with those tricky L-shaped sections, collimated beams help maintain focus stability throughout the cut. Direct drive rotary axes make a big difference too since they basically eliminate any backlash problems when doing miter cuts. For stainless steel L profiles, switching to nitrogen assisted cutting makes a noticeable improvement. Thermal distortion drops around 40% compared to regular carbon based methods. Manufacturers also rely on rigorous kinematic calibration to keep everything square. They can achieve perpendicularity within half a degree across all axes even on pieces as long as six meters. The best part? No need for those time consuming post cut corrections that used to be standard practice.
Complex Geometry Cutting: Bevels, Miters, and Contours on L-Profiles
Multi-Axis Mitering (e.g., 45°) and Kinematic Feasibility Limits
The five axis system (with X, Y, Z plus two rotating axes) makes it possible to cut those tricky 45 degree miters on angle steel accurately. The machine tilts the cutting head while rotating asymmetrical L profiles through CNC control. These path planning algorithms actually account for gravity pulling things out of alignment and handle the irregular shapes too. They can create complicated connections such as saddle joints while keeping the cut width consistent within about 0.1 mm. But there's a catch when angles go past 60 degrees because the motors start struggling with torque. At straight 90 degree cuts, the accuracy drops to around plus or minus 0.4 degrees. A recent study from last year showed that getting these joints right cuts down on warping after welding by somewhere between 25 and 40 percent, which matters a lot for structural integrity.
| Angle Range | Tolerance | Profile Stability |
|---|---|---|
| 0°–30° | ±0.1° | High |
| 30°–60° | ±0.2° | Moderate |
| 60°–90° | ±0.4° | Low |
Notch and Hole Precision: Positional Accuracy and Edge Finish (Ra < 3.2 µm)
With laser cutting technology, notch and hole positions are accurate within plus or minus 0.05 mm. This level of precision makes it possible to assemble angle steel frameworks without needing bolts or going back for corrections. When it comes to surface finish, high frequency pulsed lasers create edges with roughness between Ra 1.6 and 2.8 micrometers. That's actually better than the industry standard of under 3.2 micrometers where minimal deburring is required. The system uses adaptive optics to keep the laser focus consistent along those tricky L-shaped profile corners. As a result, the heat affected zone stays really shallow, around less than 0.2 mm deep even when working with 8 to 10 mm thick carbon steel. Vacuum clamping helps reduce vibrations while making holes, so most holes come out nearly perfectly round at over 99.7% circularity rates. And this works at pretty fast speeds too, sometimes over 12 meters per minute. Field tests have shown these improvements cut down on structural assembly time by about 18%, which is quite significant for manufacturers looking to streamline their processes.
Stability & Thermal Management for Reliable Angle Steel Processing
Vacuum-Assisted and Adaptive Fixturing for Asymmetric L-Profile Rigidity
Angle steel tends to have an uneven shape which creates problems with rigidity when using high speed laser cutting equipment. Vacuum clamping systems work by applying even pressure all over the piece, so there's no lifting at all and those tricky thin walls stay put during processing. When dealing with parts that come in different shapes or sizes, we've found that fixtures with adjustable grips maintain position within about 0.05 mm accuracy without needing constant adjustments from operators. Keeping things cool is another big concern. Our machines use chilled surfaces that touch the material directly, making sure temps stay under around 150 degrees Celsius throughout the whole cut. This helps prevent unwanted warping and keeps dimensions consistent even after running batch after batch.
Material and Thickness Considerations for Laser Pipe Cutting Machine Applications
Carbon, Stainless, and Aluminum Angle Steel: Kerf Consistency vs. Thermal Conductivity
The choice of materials really affects how consistent the cut width stays during processing. Carbon steel has just enough thermal conductivity to absorb energy steadily, which helps maintain those consistent cuts around 0.1 mm wide. Stainless steel works differently because it doesn't conduct heat as well. This means operators need to carefully control the laser power to prevent warping, though good results can still be achieved with proper tuning. Aluminum presents another challenge altogether since it conducts heat so quickly about 150 W per meter Kelvin. Operators have to constantly adjust both the pulse rate and gas pressure settings to keep the cut width stable. Material thickness matters too. For thicker pieces between 5 and 10 mm, more power is needed to get through completely. Thinner materials in the 1 to 3 mm range actually work better with less energy applied, otherwise edges tend to warp. Getting great results comes down to matching machine settings with each material's specific heat handling characteristics.
