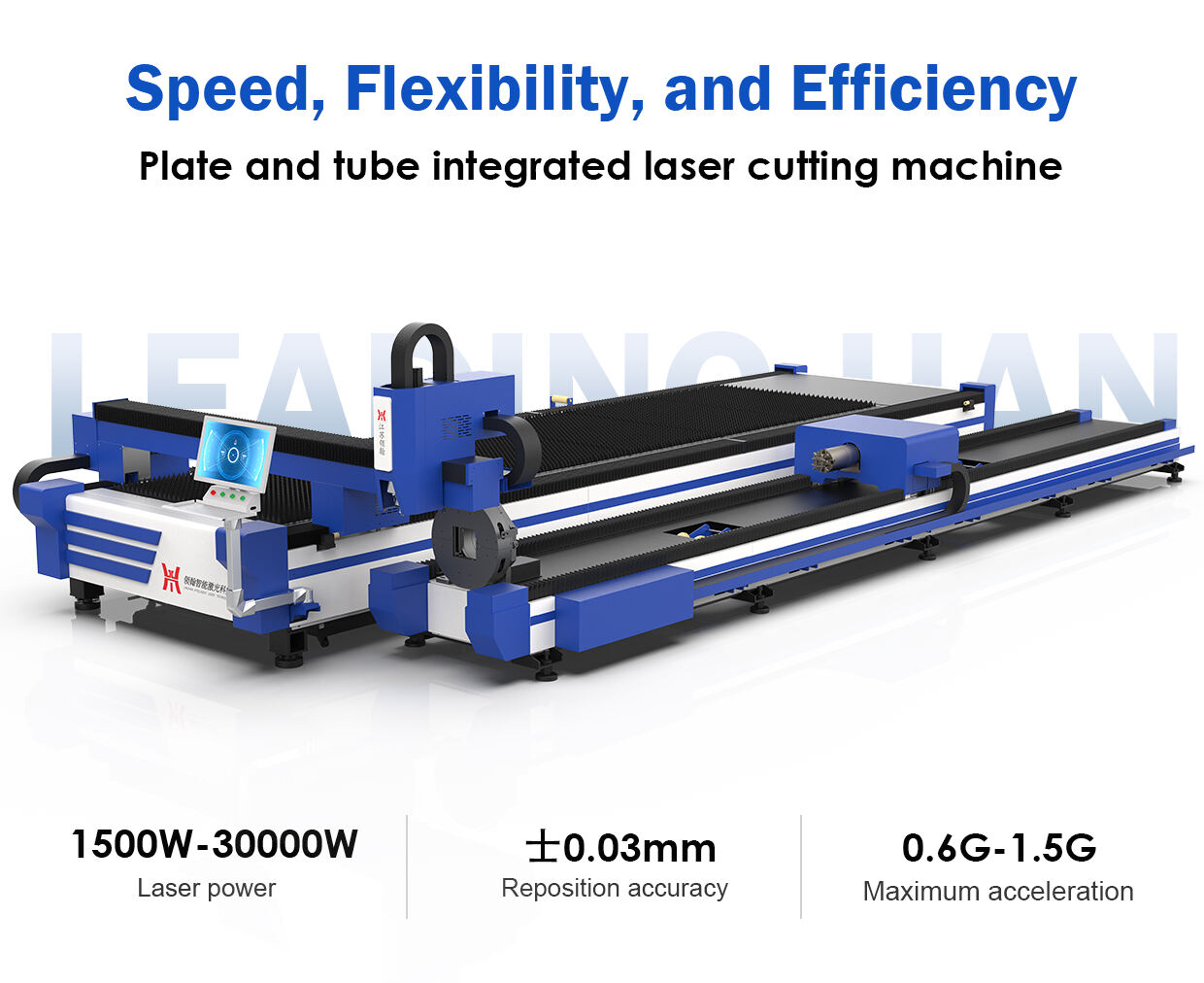

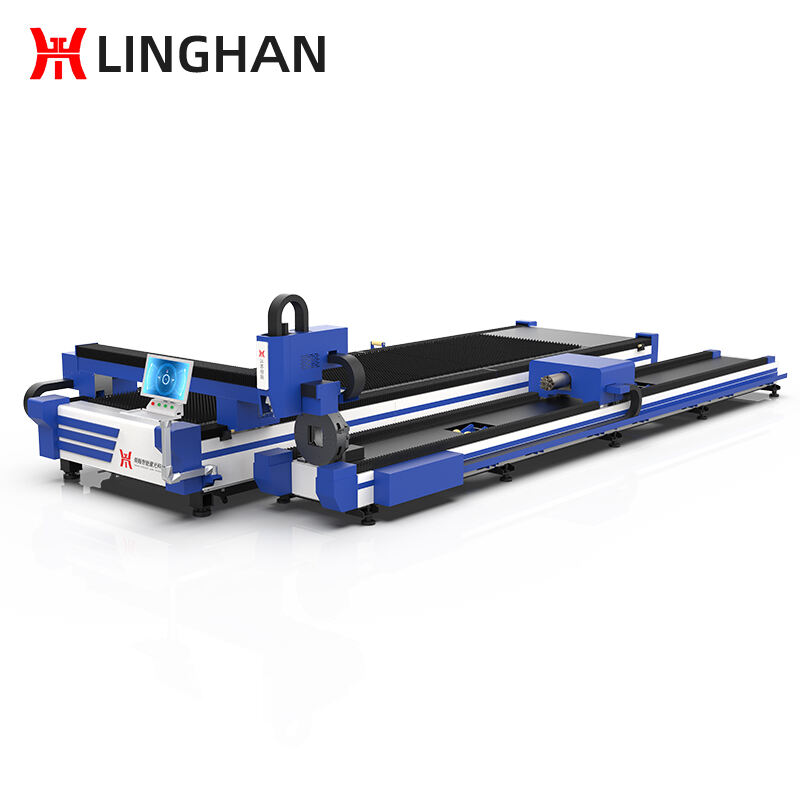

Plate and tube integrated laser cutting machine
LH-BP metal sheet and pipe laser cutting machine, equipped with fiber laser power ranging from 1.5kw to 30kw. Optional 6m and 9m pipe cutting capabilities. It cuts both sheet and tube metals. The machine features an open structure, providing visibility of the work process. This versatile fiber laser cutting machine is suitable for cutting metal plates and pipes, saving over 50% of space and improving productivity. With its integrated sheet and pipe design, it offers enhanced industry adaptability for various thin metal sheets and pipes. Pipe diameter range: 10-350mm.
- Overview
- Recommended Products
Machine Features:
1. Equipped with an automatic focusing cutting head, the focus can be automatically and accurately adjusted according to the material thickness, suitable for various focal lengths. This reduces perforation time, improves perforation quality, and enables high-speed cutting.
2. The heavy-duty bed and lightweight gantry ensure the machine operates stably and at high speeds. The ergonomic design makes the machine operation simpler and more convenient.
3. The pneumatic chuck is equipped with fully automatic chucks at the front and rear, which automatically clamp and determine the pipe center.
4. The intelligent control system features self-loading functions. The wireless hand controller allows for quick operation and supports various common file formats.
Product parameters：
Note: All sizes can be customized
| Model | BP3015 | BP4015 | BP4020 | BP6020 | BP10025 |
| Cutting range | 3000*1500 | 4000*1500 | 4000*2000 | 6000*2000 | 10000*2500 |
| mm | mm | mm | mm | mm | |
| brand name | Leading han | ||||
| Plate processing size | customizable | ||||

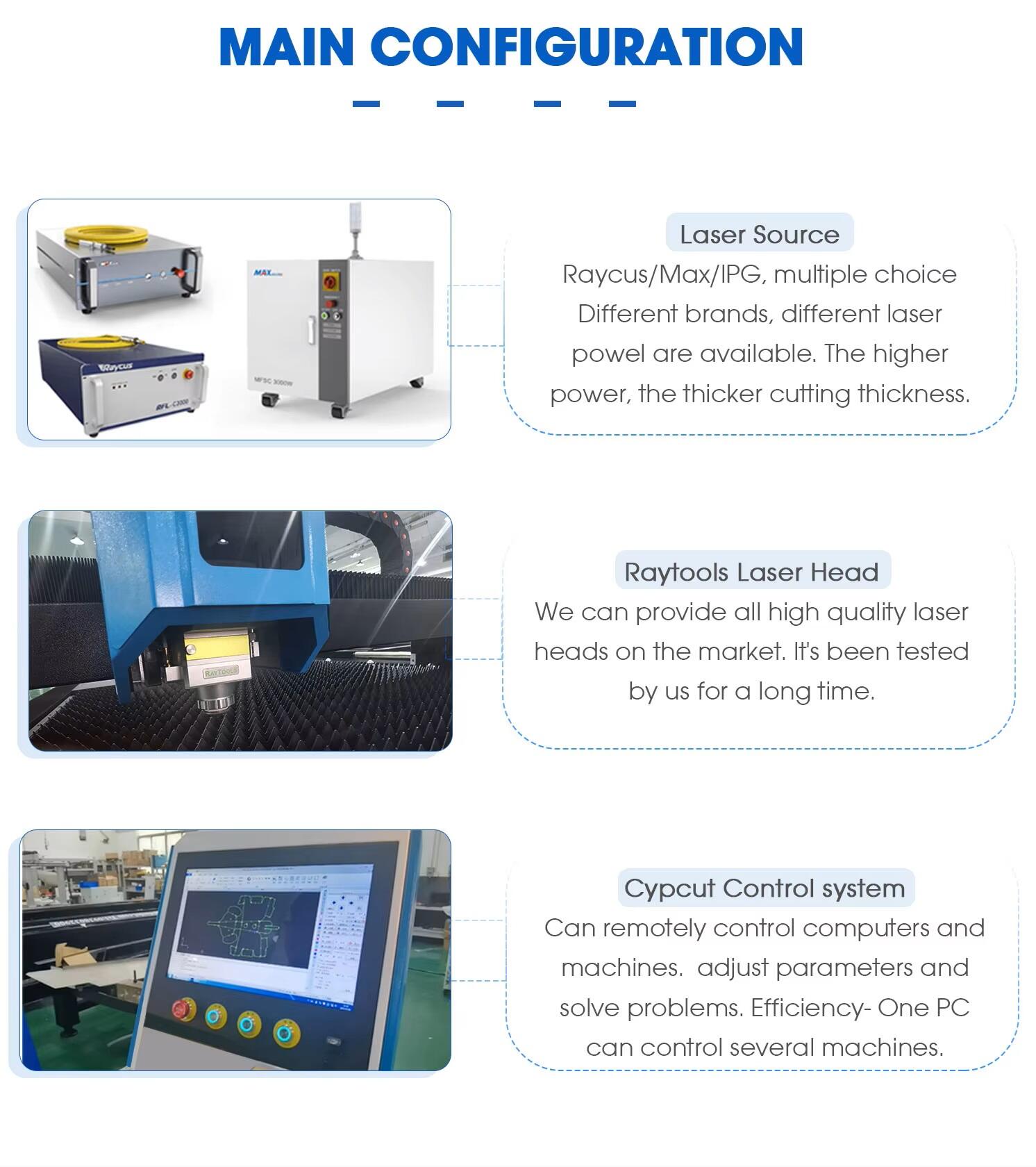

| Laser source brand | RAYCUS\IPG | ||||
| Laser head brand | Raytools\Boci | ||||
| Servo motor brand | DELTA | ||||
| Guiderail | On the silver | ||||
| Control system brand | Cypcut | ||||
| X/Y-axis positioning accuracy | ±0.05 mm | ||||
| X,Y-axis uniaxial maximum positioning speed |
120 m/min | ||||
| X, Y-axis maximum linkage speed |
140 m/min | ||||
| Maximum running speed | 80 Meters /minute | ||||
| Z-axis travel | 300mm | ||||
| Laser power | 1500W-30000W | ||||
| Positioning accuracy | ±0.03mm | ||||
| Reposition accuracy | ±0.03mm | ||||
| Maximum acceleration | 0.6G-1.5G | ||||
| Applicable Material | Stainless Steel Carbon Steel Aluminum etc. | ||||
